Electrical Cables

A power cable is an electrical cable, an assembly of one or more electrical conductors, usually held together with an overall sheath. The assembly is used for transmission of electrical power. Power cables may be installed as permanent wiring within buildings, buried in the ground, run overhead, or exposed These Cables are manufactured with Armoured or without Armoured according to the customer’s requirement.

In Palrecha Cable Industry we Manufacture Aluminum Cable 1.1kv Grade in Various square millimeter,

We offer wide range Industrial Flexible Cables. These are fabricated by our trained professional engineers using high grade material. The complete range is highly effective in fixed wiring and flexible operations. These cables are used in various industries due to its vast specifications.

PVC insulated/sheathed Multicore Cables with flexible conductors are manufactured with most stringent quality ensure total safety, prevention of shock hazards, less possibility of fires and complete assurance for a perfect system. E.C grade copper and dielectric grade virgin specially compounded PVC make these wires ideal for any industrial/ Equipment/appliances application. These insulated PVC cables are used for indoor movable installation in dry locations, connecting to source power portable electrical appliances operating under un-favourable conditions. PVC coated cables can also be used for DC voltages. We provide multicore cable, copper wire cables, insulated copper cable, stranded copper cable.

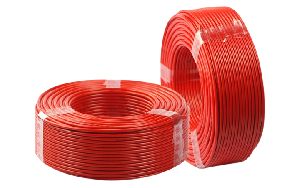

More than the fire systems it is the wires that are used in the process which makes a huge amount of difference. A quality fire alarm cable transmits clear and appropriate signals to the fire systems, which eventually helps avoid disasters

We offer a comprehensive range of special Cable Wires, which are used in high security equipments. Available in different length and sizes, these cable can withstand high temperature.These cables have Fire ratardant properties. Effective in long duration use, these wires withstand a significant degree of stretch and bend.

Fire Alarm cables are used for a variety of life safety devices, and are required to comply with many codes and standards.

Features

• Red color jacket
• Non-plenum, riser rated
• Plenum rated
• Sunlight resistant, riser jacket
• Jacket rip cord

Benefits

• Identified as universal fire alarm cable
• Simplifies selection with multiple listings (FPL, FPLR, CL3R and CMR*)
• Simplifies selection with multiple listings (FPLP, CL3P and CMP*)
• Withstands direct sunlight exposure
• Easy to open; saves cable preparation time
• Allows both ends of a cable run to be easily identifiable without the need to separately label or tone the cable
• Saves on installation time
• Provides remaining length of cable on spool resulting in less scrap
• Rugged, robust and easy to handle
• Electromagnetic Interference (EMI) protection

 Features :

• Bright-annealed 99.97% pure bare copper conductors these cables have low conductor resistance

• Quality backed by 22 years experience in cable industry

• Excellent resistant to moisture, abrasion, grease, oil.

• Longer Flexible Life

• Tough & flexible cable with excellent moisture, abrasion & weather resistance ¢ Excellent weather and moisture resistance.

• Safe, reliable with excellent wet electrical properties.

• Good insulation properties when submerged in water

• Available with ROHS PVC for drinking water pump

• Excellent mechanical & electrical properties

• Working voltage - 1100 Volt

• Progressive sequential length marking on every meter

• Conductor - bright annealed 99.97% pure bare copper

• Embossing on sheath conductor confirming to IS 8130 : 2013

• Outer sheath comprises of highly abrasion resistant PVC

• Color of cores - Red, Yellow, Blue compound impervious to grease, oil and water etc.

• Specification - IS 694:2010

• Available in drums of cable length 500 mtr +/- 5%

• Best quality of electrolytic grade copper

• Cable also available in 100 mtr length

Palrecha Cables Industry’s Cables are used for giving electrical connection to the submersible pump motors. Up to the depth of 500 m and water temperature up to +75°C. These cables are ideal for outer installations in dry, moist and wet environments but however not suitable for explosive areas.

3 Core flat submersible cables is specifically manufactured to power submersible pumps which goes deep inside earth surface to fetch water. This specially designed cable is capable to provide electrical energy to submersible pump installed under water in harsh & hostile conditions

The conductor is made of multistrand electrolytic grade copper wire of highest purity of 99.97% purity. The conductors are fully annealed into a compact, cohesive and uniform conductor with extra flexibility and conductivity more than 100%. The entire process is carried out in fully automatic plant that incorporates the latest cable technology and manufacturing techniques with PLC based machines, which ensure high degree of quality and consistency.

The LT/LV AB cables (aerial bunched) cable is a very novel concept in overhead power distribution, as compared with conventional bare conductor in overhead distribution system, AB cables provides higher safety, reliability, lower power losses and ultimate economy by reducing installation, maintenance and operative cost. This superior system is ideal for rural distribution and especially attractive for installation in difficult terrains such as highly areas, forest areas, coastal areas etc. These cables are designed, manufactured & tested conforming to IS: 14255 & other international specifications. AB cables is also considered as choice for power distribution in congested urban areas in developing urban complex AB cables is a better choice because of its flexibility for re-routing as demanded by changes in urban development plan.

\n
• \n

  Less fault rate on account of good protection against line and ground faults by high winding falling trees or birds especially in hilly areas and forests.

  \n
\n
• \n

  High insulation resistance to earth in all seasons. Negligible leakage currents and low losses.

  \n
\n
• \n

  Multiplexer circuits of power and telephone cables could be in the same set of poles.

  \n
\n
• \n

  Better adaptability to lay besides with existing overhead bare conductor system without any interference.

  \n
\n
• \n

  High capacitance and low inductance leading to low impedance of lines.

  \n
\n
• \n

  Lower voltage drop, higher current carrying capacities vis-à-vis better voltage regulations.

  \n
\n
• \n

  Longer spans and longer distance lines are possible with better system stability.

  \n
\n
• \n

  AB cables are much safer than bare conductors.

  \n
\n
• \n

  It can be laid in dense vegetation and forest areas.

  \n
\n
• \n

  Additional connections can be easily and quickly made with hot line connectors.

  \n
\n
• \n

  Overall lines cost is reduced.

  \n
\n
• \n

  Maintenance is very convenient.

  \n
\n
• \n

  Very difficult to tap the AB cables, thus reducing theft which leads to lower distribution losses.

  \n
\n

An instrumentation cable is consisting of 3 types. These are basically used for industrial applications. To transmit pneumatic, electrical, electronic signal to field from control station. For both transmit and receive data one protocol is used.

Instrumentation cables are suitable for fixed installation indoors and outdoors. Instrumentation cables are used for data transfer purposes in automation, instrumentation and process control systems, and in signal and surveillance systems.

Control and instrumentation cables may feature a type of electromagnetic shielding material, which is wrapped around the cable underneath the outer jacket.  Shielding serves to prevent electrical noise from affecting the transmitted signal, and to reduce electromagnetic radiation emission from the cable itself.  Shielding is typically comprised of metal braiding, metal tape or foil braiding.  A shielded cable assembly may also feature a special grounding wire known as a drain wire.

Today’s manufacturing and processing operations are largely controlled and measured by electronic circuitry. To ensure accuracy and greater control, interconnecting cables

Have to be reliable and durable.Palrecha Cables are focusing regarding the design posture and manfacturing process to ensure ease of installation, minimum interference in transmissionof signals and full compliance to recognised industrial standards.

Since our establishment, we have been providing our valued clients with superior grade Instrumentation Cable. These cables are widely applauded for their excellent strength and quality finish. These are manufacture following all the parameters and norms lay by the industry. Supreme grade materials are used in the manufacturing process to protect the cables from heat and water. The Instrumentation Cable is available in many lengths and specifications to meet the various needs of our clients.

Salient Features

• High current carrying capacity

• Low conductor resistance

• Resistant to oil and flame

• High insulation resistance

• Small bending radius

• Extra flexible

• Resistant to heat

• Durable

• Ozone resistant

• Exceptional mechanical propertieS

• Instrumentation cables are multiple conductor cables that convey low energy electrical signals used for monitoring or controlling electrical power systems and their associated processes

3+1 CCTV cable are used in CCTV application in that the 1 core is for co-axial cable which is used to carry the video signal & remaining 3 are carry the power. The co-axial cable consists of solid aneelled bare copper, copper conductor of electrolatic grade.

Armoured Telephone cables are used for external connection of telephone systems and other communications equipment where the added protection of steel wire armouring is needed. This cable is ideally suited for direct burial.

Outer sheath is made from tough, durable polyethylene or external grade PVC which is UV and sunlight resistant. .

This external grade armoured telephone cable is available in1, 2, 3, 4, 5, 6, 10, 20, 30, 50 or 100 pair versions, in either 0.41mm or 0.51 mm conductor sizes.

External armoured cable primarily designed for the interconnection of telephone equipment. Suitable for direct burial. UV and moisture resistant. In addition these cables may be used for interconnection of other communication and control equipment or low level signalling applications.

In Palrecha Cable Industry we manufacture Telephone Cable with or without Armoured as per the client’s requirements.
